Vacuum Insulation Panel: The Invisible Technology Redefining Refrigerator Energy Efficiency —— From Aerogel Core Material to the Home Space Revolution

### I. The Dilemma of Traditional Refrigerators: The Struggle between Space and Energy Consumption in Thick Walls

Open a traditional refrigerator, and you'll find that nearly one - third of its volume is occupied by a thick polyurethane insulation layer. This technology, which has been in use for decades, faces a double - bottleneck:

- **Space Waste**: To meet the national energy - efficiency standards, a 200L refrigerator needs an 8 - 10cm thick insulation layer, resulting in an actual storage space of only about 140L. Small - apartment users often suffer from the "big outside, small inside" problem.

- **High Energy Consumption**: The thermal conductivity of polyurethane is about 0.025 W/(m·K). In the scenario of frequent door - opening and closing, the daily heat penetration is equivalent to keeping a 200W light bulb on continuously, with an annual power consumption of over 300 kWh.

The emergence of vacuum insulation panels is to solve this contradiction. Its core lies in the civilian application of vacuum insulation technology from the aerospace field. Through nanoscale material innovation, a "thermal conduction forbidden zone" is constructed between the inside and outside of the refrigerator.

### II. The Technical Secrets of Vacuum Insulation Panels: Double Breakthroughs in Nanomaterials and Physical Insulation

1. **Aerogel Blanket Core Material: A Nanoscale Thermal Barrier Expert**

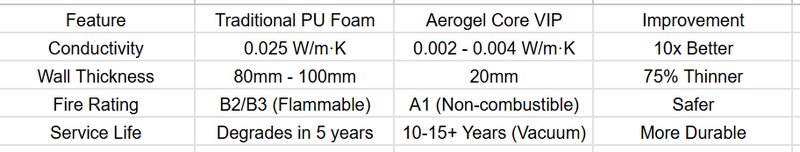

The core of the vacuum insulation panel is the aerogel blanket core material - this "air - solidified substance" woven from silica nanoparticles has a porosity of up to 95% and an average pore diameter of only 20nm. It is one order of magnitude larger than air molecules (0.3nm), but can block heat conduction like a sieve. When the air is evacuated to a vacuum environment below 1mbar, the heat conduction of the solid skeleton in the core material (thermal conductivity 0.015 W/(m·K)) and the residual gas is suppressed simultaneously, ultimately achieving an ultra - low thermal conductivity of **0.004 W/(m·K)**, equivalent to building a "nanoscale thermal insulation Great Wall" between the inside and outside of the refrigerator.

2. **STP Structural Design: Double Guarantee of Safety and Lifespan**

The STP (Structure Vacuum Insulation Panel) vacuum insulation panel adopts a three - layer composite structure:

- **Inner Layer**: The aerogel blanket and glass fiber reinforcement layer provide anti - deformation ability.

- **Middle Layer**: The high - barrier aluminum - plastic film (PET / aluminum foil / PA composite) has a gas permeability of < 0.001 cm³/(m²·day), ensuring a 10 - year vacuum retention rate of > 95%.

- **Outer Layer**: The Class A fire - resistant coating, certified by UL94 V - 0, does not melt and releases no toxic gases even when in contact with an open flame, completely eliminating the fire hazard of traditional polyurethane.

### III. Disruptive Applications in the Refrigerator Scenario: Analysis of Four Core Advantages

1. **Volume Revolution: Allowing a Small Refrigerator to Hold a Big World**

Take a 300L side - by - side refrigerator of a certain brand as an example. After replacing it with a 2cm thick vacuum insulation panel:

- **Thickness Comparison**: The insulation layer is reduced from the traditional 8cm to 2cm, and the thickness of the refrigerator body is reduced by 6cm. With the same floor area, the internal volume is increased to 360L, equivalent to an extra drawer of storage space.

- **Design Freedom**: The ultra - thin insulation layer enables the refrigerator to be embedded in the cabinet for "zero - embedding installation". The "Home Connect" series of German Bosch uses this technology, with a depth of only 54cm, perfectly adapting to the integrated design of modern kitchens.

2. **Energy - Efficiency Leap: From an "Energy Guzzler" to an "Energy - Saving Model"**

In the - 18℃ freezer test, the heat penetration of the vacuum insulation panel is only 1/5 of that of traditional polyurethane. Refrigerators equipped with this technology:

- **Energy Consumption Data**: The 24 - hour power consumption is reduced from 1.2kWh to 0.7kWh, meeting the latest A+++ energy - efficiency standard of the EU. Over 10 years, the cumulative electricity cost savings exceed 1500 euros.

- **Environmental Benefits**: The annual carbon emissions are reduced by 280kg, equivalent to planting 15 fir trees, in line with the global trend of "low - carbon household appliances".

3. **Freshness Upgrade: Stable Temperature Zones Protecting the Activity of Food Ingredients**

The ultra - low thermal conductivity of the vacuum insulation panel brings more precise temperature control:

- **Temperature Fluctuation**: After opening and closing the door, the temperature zone of a traditional refrigerator fluctuates by ±3℃, while that of a refrigerator with a vacuum insulation panel only fluctuates by ±0.5℃. The formation speed of meat ice crystals is slowed down by 60%, the water - locking rate is increased to 92%, and the juice loss of steak after thawing is reduced by 40%.

- **Humidity Management**: The hydrophobic treatment on the surface of the core material makes its water absorption < 0.1%. The humidity in the refrigerator compartment can be stabilized at 85% - 90%. The weight loss rate of strawberries within a 7 - day freshness period is only 3%, far exceeding the 8% of traditional refrigerators.

4. **Long - Life Design: One Choice, Ten Years of Peace of Mind**

The vacuum insulation panel has a triple durability design:

- **Aging Resistance Test**: In a high - temperature and high - humidity environment of 60℃ for 1000 hours, the increase in thermal conductivity is < 8%, far exceeding the 25% attenuation rate of polyurethane.

- **Intelligent Monitoring**: High - end models are equipped with a micro - pressure sensor. When the vacuum degree drops to the critical value, the APP automatically reminds the user to contact after - sales service. The local replacement cost is only 1/3 of the overall maintenance cost.

- **Circular Economy**: Retired panels can have their vacuum degree restored through professional equipment, and the core material recycling rate reaches 75%, meeting the environmental requirements of the EU's Waste Electrical and Electronic Equipment (WEEE) directive.

### IV. Technical Extension: The Insulation Imagination from Refrigerators to the Whole House

The technical advantages of vacuum insulation panels are going beyond the refrigerator scenario:

- **Commercial Freezers**: After a certain chain supermarket's refrigerated cabinets adopt 5cm thick vacuum insulation panels, the cold loss is reduced by 40%, the compressor start - stop frequency is reduced by 30%, and the equipment lifespan is extended by 5 years.

- **Car Refrigerators**: The outdoor camping - specific models, through vacuum insulation technology, can operate continuously for 48 hours in the - 20℃ freezing mode in a 35℃ environment without frequent charging.

- **Building Integration**: The STP vacuum insulation exterior wall panel with the same technical principle as the refrigerator has been applied to the construction of passive houses. A 3cm thickness can achieve the same insulation effect as a traditional 20cm brick wall. In the future, the "technical commonality between refrigerators and building walls" may be realized.

### V. The Future is Here: When Refrigerators Meet "Breathable Thermal Insulation Technology"

With the decrease in material costs (currently, the unit price of vacuum insulation panels has dropped from 500 yuan/㎡ to less than 200 yuan/㎡), this technology is spreading from high - end models to the mainstream market. In the foreseeable future:

- **Intelligent Linkage**: The vacuum insulation panel integrated with a temperature - sensing chip can automatically adjust the refrigerator's power according to the stored food ingredients. For example, when breast milk storage is detected, it automatically switches to the - 20℃ deep - freezing mode and strengthens insulation.

- **Transparent Insulation**: The "aerogel glass vacuum panel" under research combines light transmittance and heat insulation. In the future, refrigerator doors may use this material, allowing users to see the internal food ingredients without opening the door, further reducing cold loss.

- **Sustainable Manufacturing**: Bio - based aerogel core materials (such as nanocellulose derived from sugarcane bagasse) have entered the laboratory stage. In the future, the full - life - cycle carbon neutrality from "plants to insulation panels" will be achieved.

### Conclusion: Every Degree of Temperature Difference is the Temperature of Technology

When we open a refrigerator equipped with a vacuum insulation panel, what we see is not only a spacious storage space and fresh food ingredients, but also the perfect integration of materials science and life aesthetics. The thermal insulation network woven by the aerogel blanket core material at the nanoscale and the ten - year - long protection of the vacuum environment by the STP structure essentially represent the ultimate pursuit of "the temperature of home" - using the coolness of technology to protect the warmth of life. This technology, once used for spacecraft temperature control, is now quietly entering tens of millions of households around the world, making every access to food ingredients a double enjoyment of energy - saving and convenience. Perhaps in the near future, we will be amazed at such a daily life: no need to compromise on refrigerator volume, no need to worry about high electricity bills, and even forget the existence of the insulation layer - because true technology always makes complex principles hidden in invisible protection.
