Why is aerogel blanket the first choice for cost reduction and efficiency improvement?

I. Practical Dilemmas in Industrial Pipeline Insulation: Beyond "Maintaining Temperature"

For commonly used industrial pipelines like DN200, an operating temperature of 300°C imposes strict requirements on insulation materials. However, most enterprises find that focusing solely on "insulation effect" is far from sufficient during material selection. Three core dilemmas often hinder project implementation:

Firstly, there are installation space constraints. Traditional materials such as rock wool and calcium silicate need to be laid in relatively thick layers to meet heat loss control standards. In workshops with dense pipelines or narrow installation environments, overly thick insulation layers are prone to conflicts with other equipment, increasing construction difficulty and even requiring modifications to pipeline layouts. Secondly, there is the hidden consumption of operational and maintenance costs. These materials generally have a service life of 5-10 years. Under long-term high-temperature conditions, they are prone to pulverization and cracking, necessitating regular replacement. The shutdown losses and labor costs during replacement are often several times the material purchase price. Finally, there is the cost inversion in export scenarios. As a major exporter of insulation materials, Chinese enterprises often face the awkward situation where "sea freight is higher than the value of the goods." The high density and large volume of traditional materials keep the transportation cost per unit product high.

The core of these dilemmas lies in the fact that traditional materials cannot balance the relationship among "performance, service life, and cost" — and the emergence of aerogel blankets precisely provides a way to break through this predicament.

II. Thin yet Qualified: Upgrading Insulation Effect through "Reduction"

The most intuitive advantage of aerogel blankets is completing equivalent or even better insulation tasks with a "thinner thickness," supported by their core technical indicator — ultra-low thermal conductivity.

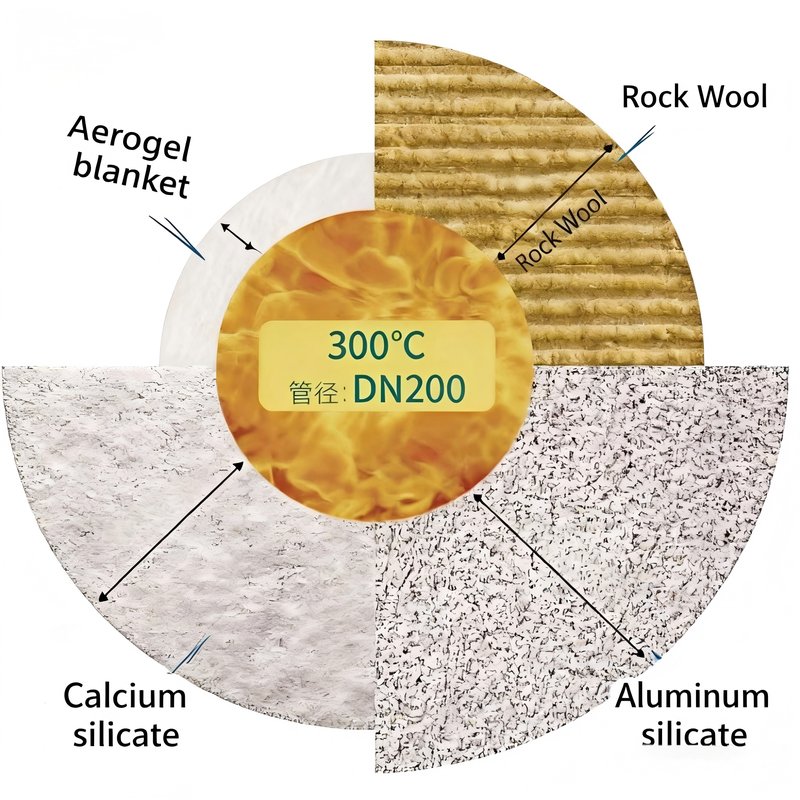

The thermal conductivity of aerogel can be as low as 0.018W/(m·K), far superior to traditional materials. For a DN200 pipeline under 300°C working conditions, to achieve the same heat loss rate (usually required to be ≤5%), the laying thickness of aerogel blankets is only about 1/3 that of rock wool and 1/4 that of calcium silicate. The direct value brought by this "thinning" is reflected in two aspects: one is the improved installation convenience, eliminating the need to modify existing pipeline layouts and enabling efficient construction in narrow spaces, which is especially suitable for old factory renovation projects; the other is the reduced material usage. Although the unit price of aerogel blankets is higher than that of traditional materials, the thin design significantly reduces the total material consumption per unit pipeline length, narrowing the gap in basic procurement costs considerably.

Practical cases from a chemical enterprise show that after using aerogel blankets for insulation on its DN200 steam pipelines, the insulation layer thickness was reduced from 120mm with traditional materials to 30mm. The construction efficiency increased by 40%, and additional expenses for adjusting adjacent pipelines due to insufficient space were avoided. The initial comprehensive cost for a single pipeline even decreased by 15%.

III. Ultra-long Service Life: Cutting Hidden Operational and Maintenance Costs with "Durability"

The "cost-effectiveness" of industrial insulation has never been determined by the initial purchase price but by the comprehensive loss throughout the entire life cycle — which is another core competitiveness of aerogel blankets.

The service life bottleneck of traditional insulation materials stems from performance degradation in high-temperature environments: rock wool is prone to pulverization and falling off when in an environment above 300°C for a long time, and calcium silicate has insufficient thermal shock resistance, leading to cracking after alternating cold and heat. These problems will reduce the insulation effect, forcing enterprises to replace them regularly. Calculated over a 15-year operation and maintenance cycle, rock wool needs to be replaced 2-3 times, and calcium silicate 1-2 times. Each replacement results in an average shutdown time of 2-3 days. Based on the daily output value of industrial enterprises, the loss from a single shutdown can reach hundreds of thousands of yuan.

Aerogel blankets can withstand a wide range of temperatures from -200°C to 650°C, and can operate stably for more than 15 years under 300°C working conditions. They also have excellent anti-aging and thermal shock resistance properties, with almost no pulverization, cracking, or other issues. It is equivalent to "one-time laying, lifelong worry-free," not only saving the material costs of multiple replacements but also avoiding shutdown losses, the largest hidden expense. Operational data from a thermal power company shows that DN200 pipelines insulated with aerogel blankets did not require a single insulation layer replacement in 10 years, and the operation and maintenance costs alone were nearly 70% lower than those of similar pipelines using rock wool.

IV. Maritime Shipping Advantage: The "Cost Optimization Code" in Export Scenarios

For Chinese insulation material enterprises targeting the global market, the lightweight characteristic of aerogel blankets is the key to solving the problem of high maritime shipping costs.

Among traditional insulation materials, calcium silicate has a density of about 200-300kg/m³. Although the density of rock wool is similar to that of aerogel blankets (100-200kg/m³), its thickness is 3-5 times that of aerogel blankets, resulting in a huge difference in transportation volume for the same insulation area. Taking a 20-foot standard container (20GP) as an example, the loading capacity of traditional rock wool is about 800㎡ of insulation area, while that of aerogel blankets can reach 2000-2400㎡, which is 2.5-3 times that of traditional materials.

This means that for the same export order quantity, using aerogel blankets can reduce the number of containers used by 2/3, directly reducing the maritime shipping cost per unit product to about 1/3 of that of traditional materials. Financial data from an export enterprise shows that when exporting insulation materials supporting DN200 pipelines to Europe, the proportion of maritime shipping costs for aerogel blankets dropped from 65% of traditional materials to 22%, completely reversing the cost inversion situation where "freight is higher than the value of goods" and significantly enhancing product competitiveness.

V. Selection Suggestions: Applicable Scenarios and Core Values of Aerogel Blankets

Not all insulation scenarios require excessive pursuit of high-end materials, but the value of aerogel blankets is particularly prominent in the following three types of scenarios: first, DN200 pipeline projects with limited installation space, such as workshop pipeline transformation and laying in narrow spaces; second, projects that operate at high temperatures for a long time and pursue low operation and maintenance costs, such as heat supply networks and pipelines supporting chemical reactors; third, procurement of insulation materials oriented towards exports, especially for markets with long maritime shipping distances such as Europe, America, and Southeast Asia.

It is worth noting that the "high unit price" of aerogel blankets is a relative concept — when installation costs, operation and maintenance costs, and transportation costs are included in the comprehensive accounting, their full-life cycle cost is 30%-50% lower than that of traditional materials. This is the core reason why more and more enterprises are shifting from "initial cost orientation" to "comprehensive value orientation" and choosing aerogel blankets.

Conclusion

The selection of insulation for 300°C DN200 pipelines has long evolved from "whether there are suitable materials" to "whether there are better solutions." The rise of aerogel blankets is not only an iteration of insulation material technology but also reconstructs the cost logic of industrial insulation — it solves space pain points with a thin design, reduces operation and maintenance losses with an ultra-long service life, and breaks through export difficulties with lightweight advantages, ultimately achieving a win-win situation of "meeting performance standards" and "controlling costs." For industrial enterprises pursuing cost reduction and efficiency improvement, choosing aerogel blankets essentially means choosing a more long-term competitive insulation strategy.

If you have any opinions or needs, please contact us, and we can provide free aerogel blanket samples.
