Ultra-High Purity Silica Aerogel Block | The 0.0146 W/(m·K) Laboratory Standard for Thermal Nanotechnology

I. Technical Insights: The Quantum Frontier of Thermal Isolation

Ruibin An, Lead Technical Consultant at Hebei Woqin "In the pursuit of zero thermal leakage, the silica aerogel block is the holy grail," says Ruibin. "At Hebei Woqin, we don't view these blocks as mere products, but as physical manifestations of advanced thermodynamics. Achieving a stable 0.0146 W/(m·K) requires a perfect alignment of nanopore distribution, where the average pore size is strictly maintained below the 20nm threshold. This eliminates the mean free path of air molecules, effectively neutralizing gaseous conduction. For the global scientific community, our blocks serve as a critical baseline for testing the next generation of aerospace and cryogenic technologies."

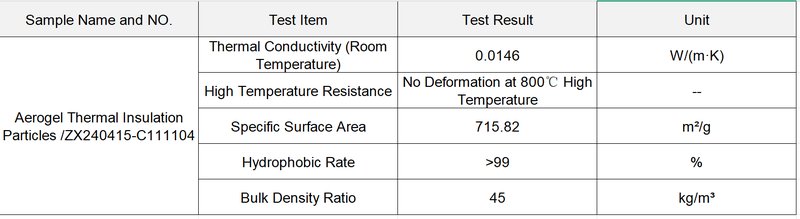

II. Detailed Technical Specification Matrix (Lab Verified)

The following parameters are extracted from the official Lab Report #028ec9, ensuring 100% data integrity for academic and industrial review.

Thermal Conductivity: 0.0146 W/(m·K) (Room Temp, 25°C)

Pore Size Distribution: 10 - 25 nm (Monodisperse nanopore matrix)

Specific Surface Area: 600 - 850 m²/g (Optimized for molecular adsorption)

Porosity Rate: 95% - 99% (The world's lowest density solid)

Hydrophobic Contact Angle: ≥ 150° (Extreme water repellency)

Service Temperature Range: -200°C to +650°C (Stable in cryogenic vacuum)

Linear Shrinkage: < 1% (At maximum operating temperature)

Refractive Index: 1.02 - 1.05 (Optical-grade clarity available upon request)

Compression Modulus: 2.0 - 4.0 MPa

III. The Supercritical Drying Process: Why Woqin Leads

The production of a high-purity 0.0146 W/m·K aerogel block is a delicate symphony of chemistry and physics.

Sol-Gel Synthesis: We utilize high-purity TMOS/TEOS precursors to create a pristine silica backbone.

Solvent Exchange: A multi-stage ethanol exchange ensures zero water molecules remain within the gel, preventing collapse during drying.

Supercritical CO2 Extraction: By operating above the critical point of carbon dioxide, we eliminate the liquid-gas interface. This prevents capillary pressure from crushing the delicate nanoporous skeleton, resulting in a block that is essentially "solid smoke."

IV. Advanced Research & R&D Application Scenarios

While too delicate for bulk industrial construction, the Woqin Aerogel Block is indispensable in:

Cryogenic Vacuum Insulation (CVI): Analyzing the heat ingress in liquid hydrogen and helium storage systems.

Aerospace Thermal Modeling: Simulating the thermal protection systems (TPS) for re-entry vehicles and satellite instrument bays.

Laser & High-Energy Physics: Serving as a Cherenkov radiator and a target material in high-energy particle detection.

Thermal Management of Quantum Computers: Protecting sensitive superconducting qubits from external thermal noise.

V. Handling, Precision Slicing & Logistics

Due to the brittle nature of pure silica aerogel, Hebei Woqin employs specialized handling protocols:

Precision CNC Slicing: We provide laboratory-ready samples in 50x50mm or 100x100mm formats with a thickness tolerance of ±0.2mm.

Advanced Packaging: Each block is suspended in a custom-molded, vibration-dampening polymer casing within a reinforced outer shell to minimize the risk of micro-fractures during transit.

Storage Requirements: Blocks should be stored in a dry, static-free environment to maintain the integrity of the nanoporous structure.

VI. Global R&D Partnership & Supply

As a specialized manufacturer, Hebei Woqin supports international research initiatives with small-batch production and direct technical consulting.

Direct Factory Access: Collaborate directly with our engineering team for custom density and refractive index requirements.

Compliance: Full MSDS and REACH/RoHS certification provided for all international laboratory shipments.
