Discover Translucent Concrete: Innovative Material Revolutionizing Modern Design and Architecture

In the realm of innovative building materials, translucent concrete emerges as a game-changer, blending the solidity of traditional concrete with the ability to channel light through embedded optical fibers. This composite uses the principle of total internal reflection in fibers to guide light from one side to the other, producing a mesmerizing dotted glow that resembles a starry sky or patterned illumination. Even without backlighting, its textured surface—available in shades like white, gray, or custom colors—maintains an attractive, stone-like appearance, making it ideal for aesthetic-driven projects.

The material's construction involves high-flow, self-compacting mortar combined with plastic optical fibers of varying diameters (typically 1.0mm, 2.0mm, or 3.0mm), distributed evenly or in custom patterns. Standard panel sizes range from 600x900mm to 1200x2400mm, with thicknesses of 20mm or 30mm, and fiber densities around 6000 strands per square meter for optimal light transmission. Customization options allow for specific designs, such as random star-like arrangements, wavy lines, or bespoke graphics on the surface that don't hinder light passage.

Rigorous testing underscores its reliability for real-world demands. Independent lab reports from accredited institutions confirm exceptional performance: high-temperature resistance with no visible changes after exposure (per GB/T 2423.2-2008), abrasion metrics showing mass wear of 30.7mg and volume wear of 26.6cm³ (GB/T 3960-2016), and a friction coefficient of 0.11. Hardness reaches 80 HRC (GB/T 230.1-2009), while compressive strength exceeds 65 N/mm², flexural strength over 7 N/mm², and density about 2300kg/m³. It withstands 25 freeze-thaw cycles without delamination and has a water absorption rate under 8%. Additional evaluations from other labs report bending strength above 40MPa, compressive over 90MPa, and low thermal conductivity for energy efficiency.

These properties make translucent concrete perfect for diverse applications, from architectural facades to landscape features. Installation is straightforward—dry-hanging for walls similar to stone panels, with added diffuse light sources like LED strips spaced 10cm behind for even glow. For floors, elevated supports using transparent media prevent shadows. Patterns can be tailored from a library or client designs, in formats like CDR or AI, with options for multi-color effects in yellow, red, blue, or black.

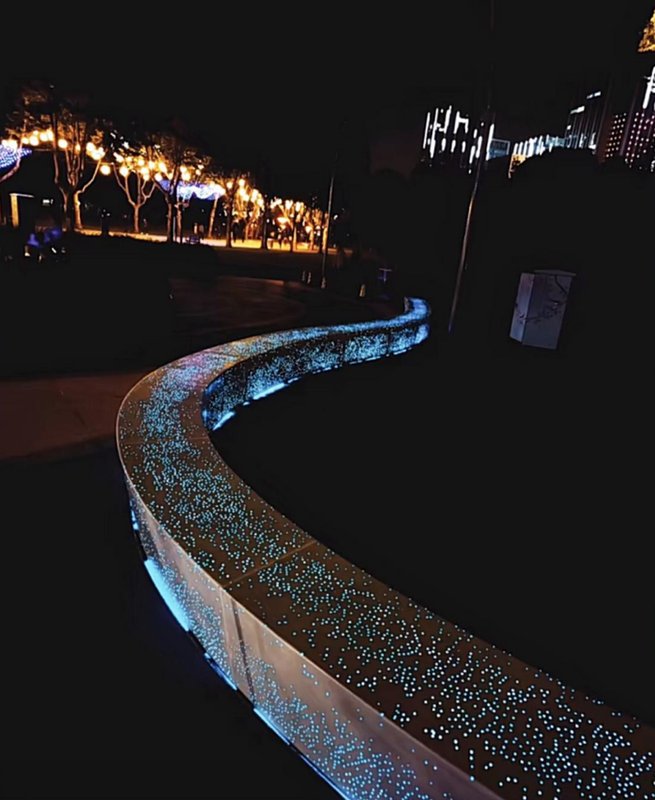

Real-world cases illustrate its transformative impact. In urban parks, curved benches made from these panels light up at night, creating safe, inviting paths that mimic constellations and reduce the need for separate fixtures. One installation featured wavy-textured barriers along walkways, providing both guidance and decoration—during the day, they blend as subtle stone elements; after dark, they emit a soft, linear glow. Bollards and car stoppers in public squares or stations serve dual purposes: traffic control by day and luminous accents by night, with solar-powered versions for eco-friendly operation. A villa entrance used pillar caps that integrate seamlessly, offering ambient lighting without extra hardware, charged via sunlight for all-night illumination. In commercial settings, like hotel lobbies or bridges, panels form glowing walls that enhance ambiance, cutting energy costs through passive light integration.

As cities prioritize sustainable and visually engaging designs, translucent concrete offers endless potential. Whether crafting star-patterned slabs for outdoor seating or custom wave designs for retaining walls, it elevates everyday structures into functional art. For those interested in sourcing, Hebei Woqin Trade Co., Ltd. provides high-quality options tailored to project needs.
